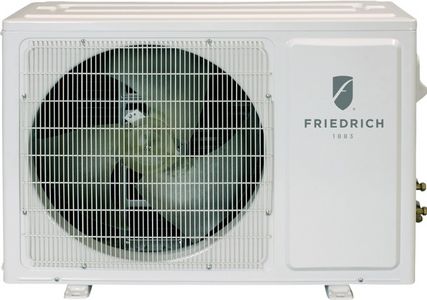

Friedrich Floating Air® Pro Single Zone Mini Split Outdoor Unit with Heat Pump


Model #:

FPHSR36A3B

Model #: FPHSR36A3B
1368823
Friedrich
$99,999.00

At a Glance

Product Dimensions 19"h x 33.88"w x 11.13"d

This Single Zone Air Conditioning Outdoor Unit with Precision Inverter® Technology pairs with a Friedrich air conditioning indoor unit. With its Precision Inverter Technology, rest assured that comfort doesn't have to come with a hefty price tag.Read More

Call for Best Price

Get to know this product.

Product Overview

Product Overview

The DiamonGold Advanced Corrosion Protection™ ensures that your outdoor unit remains in top condition even in corrosive environment. Trust your unit to work even in severely cold weather as it is designed to be able to operate in low ambient conditions. Expect nothing but exceptional efficiency and dependable performance from Friedrich.

Precision Inverter® Technology: Floating Air Pro units are equipped with a variable speed compressor. This technology not only increases the unit's energy efficiency but also minimizes noise disruptions with ultra quiet operation.

DiamonBlue Advanced Corrosion Protection®: Provides outstanding corrosion resistance protection and extends the life of the unit, especially in coastal or corrosive environments.

Soft Start Technology: Starts the compressor with significantly reduced amperage at start up, saving energy versus compressors utilizing locked rotor amperage (LRA).

Operates in Extreme Conditions: In cooling mode, Friedrich's Fast Pro technology can operate at low ambient temperatures as low as 5°F. Operation in heating mode will continue at low ambient temperatures as low as -4°F. It also has a low temperature compressor start-up protection

R-410A Refrigerant: Makes operations more cost-effective and environmentally friendly as compared to R-22 refrigerant.

Friedrich is recognized as the top brand of specialty air treatment products for the worldwide market, offering differentiated solutions for room air conditioning, dehumidification, and air purification.

*Images may not reflect actual size. Color in images may differ in person; see retailer for the actual finish.

Useful Documents
Specifications

General Specs

Product Weight (lbs.)20
ENERGY STAR CertifiedYes
Width (in.)33.88
Appliance ColorWhite
Depth (in.)11.13
Height (in.)19
ColorWhite
Noise level (dB)53
Amp230/208
SeriesFloating Air® Pro
Color Finish NameWhite
ADA CompliantNo
Air Conditioner TypeMini-Split
Smart CompatibleNo
Wifi CapableYes
BTU Cooling Rating12000
BTU Heat Rating13000
Voltage115
Ac Room SizeSmall Room ACs (50-300 SQ FT)
Air Conditioner FeaturesWi-Fi Capable
Heater IncludedYes

Additional Information

Cooling Capacity:1 BTU
Max Connectable Capacity:1 BTU

Other Specification

Power Source:208~230/60/1
Est. Yearly Operating Cost (USD):83
Cooling Amps (A):4.3
Heating Amps (A):5.0

Refrigeration System

Refrigerant:R410A
Liquid Line O.D. (in.):1/4
Suction Line O.D. (in.): 3/8
Min./Max Line Length (ft.):9.8 - 50
Max. Height Difference (ft.):33
Operating Range - Cooling (°F):5 ~ 115
Operating Range - Heating (°F):-4 ~ 75
Minimum Ampacity (A):10
Max. TD Fuse/Breaker (A): 15
